Device Layout

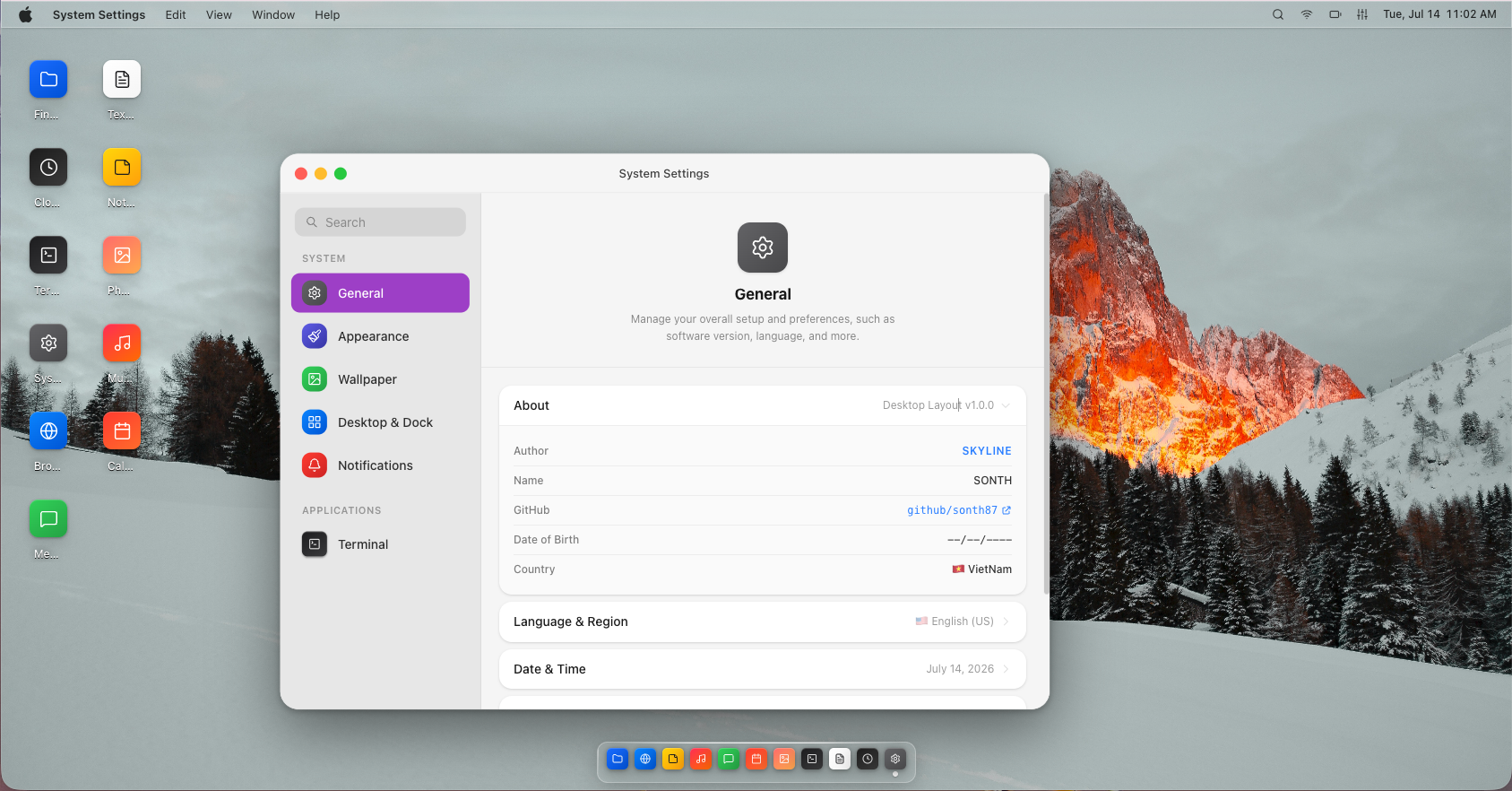

Device Layout is a browser-based desktop OS simulator designed to replicate the look and feel of popular operating systems (macOS, Windows 11, iPadOS, iOS, Android).

The core goal of this project is to provide a multi-window simulation environment where any added feature or module can be defined as an individual, isolated app running inside its own window. This architecture makes it highly suitable for deploying multi-functional applications (such as composite web dashboards or mock workspaces), or simply for fun! :D

Built with Next.js 16, React 19, TypeScript, Tailwind CSS v4, Zustand, and Motion.

Live preview: device-layout.vercel.app · Source: github.com/sonth87/device-layout

• Multi-Window Web Dashboards: Combine multiple analytics, monitoring, or workspace tools into a flexible, windowed desktop environment in the browser.
• Embedded Kiosk & Web Shells: Use Simple Mode to build customized, minimalist web apps with or without Dock, Wallpapers, or Widgets.
• Interactive Demos & Workspaces: Show users interactive product walkthroughs inside a familiar OS desktop layout (macOS, Windows 11, iPadOS, iOS, Android).
• Electron Shells & Desktop Apps: Build multi-functional desktop applications where each feature runs as an isolated app inside a windowed container.

Install the package in your host application:

npm install @sonth87/device-layout
# or
pnpm add @sonth87/device-layout
# or
yarn add @sonth87/device-layout

Mount the <DeviceLayout /> component in your React / Next.js application and import its stylesheet:

Provides a complete OS desktop environment with multi-window support, Dock, Top MenuBar, Wallpapers, Widgets, and System Apps:

import { DeviceLayout } from "@sonth87/device-layout";
import "@sonth87/device-layout/style.css";
import { myCustomApps } from "./apps";

export default function DesktopPage() {
  return (
    <div className="w-screen h-screen overflow-hidden">
      <DeviceLayout colorScheme="dark" apps={myCustomApps} />
    </div>
  );
}

Simple Mode provides a lightweight layout for kiosks, embedded environments, or custom web shells. It supports both a full minimal preset (isSimpleMode={true}) and granular feature flag configuration (isSimpleMode={SimpleModeFeatures}).

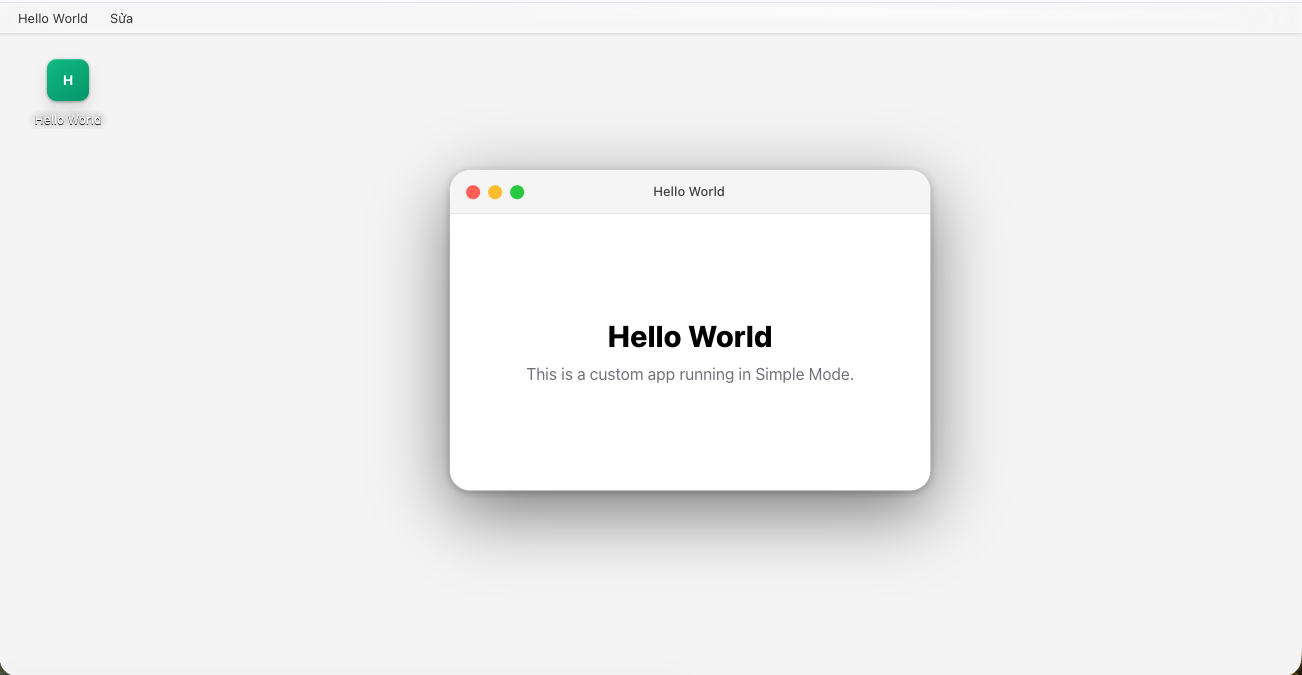

Omits all default apps, dock, desktop widgets, wallpaper images, and presents a 100% minimal container:

import { DeviceLayout } from "@sonth87/device-layout";
import "@sonth87/device-layout/style.css";
import { myCustomApps } from "./apps";

export default function MinimalDesktopPage() {
  return (
    <div className="w-screen h-screen overflow-hidden">
      <DeviceLayout
        colorScheme="dark"
        isSimpleMode={true}
        apps={myCustomApps}
      />
    </div>
  );
}

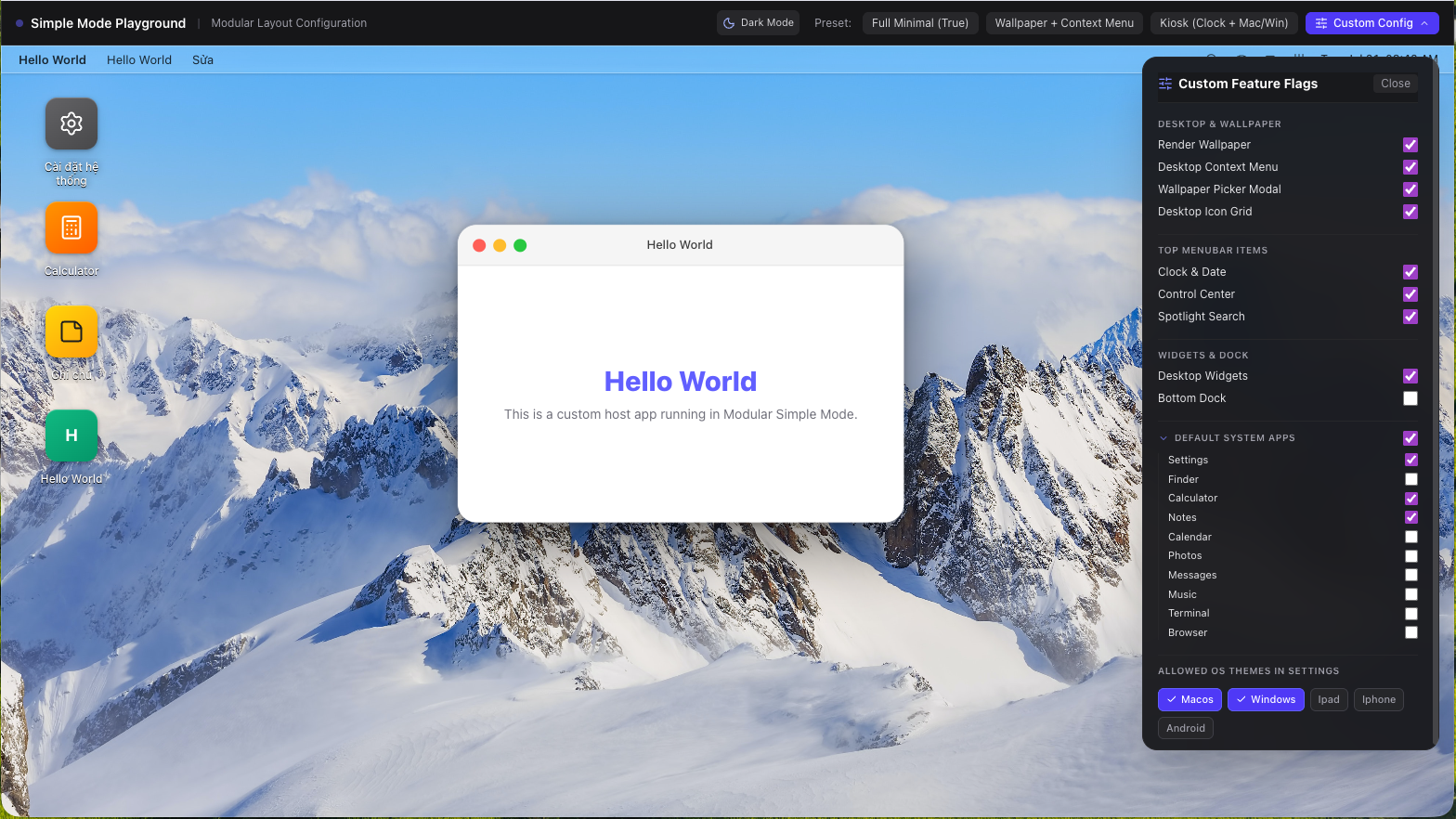

Pass a SimpleModeFeatures configuration object to selectively enable or disable wallpapers, desktop context menu, clock/spotlight, dock, widgets, or specific system apps:

import { DeviceLayout } from "@sonth87/device-layout";
import "@sonth87/device-layout/style.css";
import { myCustomApps } from "./apps";

export default function ModularSimplePage() {
  return (
    <div className="w-screen h-screen overflow-hidden">
      <DeviceLayout
        colorScheme="dark"
        isSimpleMode={{
          wallpaper: true,
          contextMenu: true,
          wallpaperPicker: true,
          iconGrid: true,
          menuBar: { clock: true, spotlight: true, controlCenter: true },
          widgets: true,
          defaultApps: ["settings", "calculator", "notes"],
        }}
        apps={myCustomApps}
      />
    </div>
  );
}

Note: For a complete list of feature flags and API details, see the Simple Mode Guide.

The <DeviceLayout /> component accepts the following configuration props:

An app is declared as a plain AppConfig object. Host applications register custom React components directly using the render prop:

import type { AppConfig } from "@sonth87/device-layout";
import { useMenuAction } from "@sonth87/device-layout";

// 1. Define your React App Component
function AnalyticsApp({
  appId,
  windowId,
}: {
  appId: string;
  windowId: string;
}) {
  // Subscribe to top menu bar actions (e.g. File -> Export)
  useMenuAction(appId, (action) => {
    if (action === "exportPDF") {
      alert(`Exporting PDF report for window: ${windowId}`);
    }
  });

  return (
    <div className="flex h-full flex-col p-6 bg-white dark:bg-zinc-900 text-zinc-900 dark:text-white select-none">
      <h1 className="text-xl font-bold">Analytics Dashboard</h1>
      <p className="text-sm opacity-70 mt-1">
        App ID: {appId} | Window ID: {windowId}
      </p>
    </div>
  );
}

// 2. Declare AppConfig
export const analyticsAppConfig: AppConfig = {
  id: "analytics",
  name: "Analytics Dashboard",
  icon: "lucide:BarChart3",
  iconColor: ["#3b82f6", "#1d4ed8"],

  // Pass your React component directly via render
  render: AnalyticsApp,

  // Dimensions & Constraints
  defaultSize: { width: 900, height: 600 },
  minSize: { width: 480, height: 360 },
  launchMode: "single", // 'single' | 'multi'
  hasMenuBar: true,
  hasStatusBar: true,

  // Top Menu Bar Declarations
  menuBarMenus: [
    {
      label: "File",
      items: [
        {
          key: "export",
          label: "Export PDF",
          shortcut: "⌘E",
          action: "exportPDF",
        },
        { key: "sep1", label: "", separator: true },
        {
          key: "close",
          label: "Close Window",
          shortcut: "⌘W",
          action: "close",
        },
      ],
    },
  ],
};

The AppConfig interface supports the following configuration properties:

• Architecture — Folder structure, Zustand store slices, data flow, theme compositors
• Integration Guide — Comprehensive guide for embedding the library, props, custom menus, edit context menu
• Agent Guidelines — Conventions, Zustand useShallow rules, Tailwind v4 guidelines
• Versioning & Releases — SemVer rules (PATCH, MINOR, MAJOR) and library bundle release workflow

• App System — AppConfig reference, adding apps, layouts, menu bar declarations, context menus, settings panels
• External App Integration — Registering custom apps using the render prop, host isolation, and bridging
• Window Management — Window types (Standard, FloatingWindow, Mobile), chrome styling, edge snapping, drag/resize mechanics

• Theme System — OS themes (macOS, Windows 11, iPadOS, iOS, Android), metrics, adding new themes
• Simple Mode — Minimalist desktop layout & SimpleModeFeatures API reference for kiosk and embedded environments

• Widget System — Declaring, registering, and placing desktop widgets
• Notifications — Banners, badges, and notification store actions
• URL State — Bidirectional window state encoding and URL hydration
• Virtual Filesystem (VFS) — In-memory file system used by Terminal and Finder
• Liquid Glass — Composited backdrop-filter and glass effect layers
• Internationalization (i18n) — Per-app locale dictionaries and language switching
• Store & Persistence — Zustand slices, persisted state keys, and store API reference

Multi-theme OS simulation

Switch between five OS themes at runtime. Each theme changes the entire chrome — dock, taskbar, menubar, window decorations, and layout behavior.

Window management

• Drag windows by title bar. Edge-resistance prevents accidentally throwing windows off screen.
• Resize from all 8 edges and corners.
• Snap to top = fullscreen (macOS: below menubar to bottom edge; Windows: respects taskbar).
• Snap to left/right = half-screen, corners = quarter-screen. Overlay preview shown while dragging.
• Fullscreen auto-hides the dock on macOS. Move mouse to the bottom edge to reveal it.
• Minimize, restore, maximize/unmaximize with spring animation.
• Drag a maximized window to unmaximize and grab it proportionally under the cursor.

URL state

Every open window — its position, size, maximized state, and the previous position before maximize — is encoded in the URL as ?w= params. Reload the page and all windows reopen in the same state.

Wire format: appId:x,y,width,height[:flags[:prevX,prevY,prevW,prevH]]

App system

Apps are declared entirely in src/config/apps.config.ts or passed via props as AppConfig[]. Each app can be: a React component (render prop or registry key), an embedded iframe, or an MDX page. Apps are code-split and loaded lazily when their window opens.

Liquid Glass

Dock, menubar, tooltips, and panel overlays use a composited glass effect built from CSS backdrop-filter, SVG displacement, WebGL2 shimmer, and a specular gradient highlight. Toggleable per-session in System Settings.

Additional

• Ambient light / dark / system color scheme
• Dock icon magnification on hover (macOS)
• Wallpaper picker via desktop right-click context menu
• Notification banners
• PWA-ready with offline support via service worker
• URL-encoded window state — reload and all windows reopen at the same position
• Modular Simple Mode — a highly customizable layout-only configuration with fine-grained feature flags (wallpaper, contextMenu, wallpaperPicker, menuBar, widgets, dock, defaultApps, allowedOSThemes). Supports full minimal mode (isSimpleMode={true}) or custom modular presets. See docs/simple-mode.md for full reference.

next@16              react@19             typescript@5
tailwindcss@4        tailwind-merge       clsx
motion               zustand@5 + immer    @tanstack/react-query@5
@radix-ui/*          lucide-react         nanoid

pnpm install
pnpm dev        # http://localhost:3000/desktop
pnpm build
pnpm build:lib  # compile library bundle into dist-lib/

See docs/content/apps.md for the full guide — AppConfig reference, layout patterns (sidebar, split-view, responsive grid), menu bar declarations, context menus, and settings panels.
