WLED Task Map

Light up LEDs on your WLED strip when something needs your attention.

Examples of what it can do:

• LED 3 blinks red when your 3D printer goes into an error state
• LEDs 0–4 turn orange when your shopping list has items on it
• Ten LEDs become a live battery gauge, filling red → yellow → green as your phone charges
• A block of LEDs works as an ambient week calendar — today's block fills as the day passes
• A tiny LED pet bounces happily when your chores are done and sulks grey when they pile up

You set all of this up by tapping LEDs and picking colors in a visual card — no YAML, no code.

• Visual rule builder — tap/drag LEDs on a live picture of your strip, pick an entity (autocomplete), tap trigger states (entity-aware suggestions, numeric comparisons like <20), choose a color. Starter templates get you going on an empty card.
• Effects & color styles — solid, ⚡ blink, 〰 pulse, ▮▯ fill (LEDs as a progress bar for any numeric sensor), with gradient and 🌈 rainbow color blending across the block.
• Week board 📅 — an ambient weekly calendar: N LEDs per day, today fills through the day with a gradient, past days dim, Monday or Sunday start, day markers on the card.
• LED pet 🐾 — a tamagotchi whose mood (happy → sulking) reflects your to-do lists and problem sensors; mood changes hit the Logbook.
• Static lights 💡 — always-lit LEDs with no entity behind them: separators, accents, plain lamps.
• Day-to-day controls — pause ⏸, silence 🔕 until the state changes, drag to reorder, duplicate, undo delete, custom names, 🔦 test-flash to locate LEDs, live strip view in the card.
• Brightness — global ☀️ intensity slider plus quiet hours 🌙 (dim to a configurable night level, hide alerts, or power the strip off on a schedule — in HA's timezone).
• Set-and-forget reliability — zeroconf auto-discovery, automatic repaint after WLED power-cycles/reconnects, flap protection ("only after N minutes"), entity renames auto-handled, Repairs warnings for dead rules, alert history in the Logbook, offline banner.
• 💾 Export / Import — back up or share every rule and setting as one JSON file.
• Automation-friendly — set_alert/clear_alert services (survive restarts), an Active Alerts sensor, and a websocket API.

Full reference (services, websocket API, troubleshooting): docs/documentation.md

1. Home Assistant up and running.
2. A WLED device — an LED strip running WLED firmware, connected to your WiFi.
3. The IP address of your WLED device (looks like 192.168.1.50). To find it: open the WLED app on your phone, or open Settings → Devices & Services → WLED in Home Assistant — the IP is shown on the device page. You can also check your router's device list.
4. HACS installed in Home Assistant. HACS is an app store for community add-ons. If you don't have it, follow the official HACS install guide first (one-time, ~10 minutes).

1. In Home Assistant, click HACS in the left sidebar.
2. Click the ⋮ (three dots) menu in the top-right corner → Custom repositories.
3. In the Repository field paste:

   https://github.com/nishithdev/wled-taskmap


4. In the Type dropdown pick Integration, then click Add and close the dialog.
5. In HACS, search for WLED Task Map, open it, and click Download.
6. Restart Home Assistant: Settings → System → click the power icon (top right) → Restart. Wait for it to come back up.

Without the restart, nothing will work — don't skip step 6.

In most cases your WLED device is discovered automatically: go to Settings → Devices & Services, look for "WLED Task Map" under Discovered, and click Add. Done.

If it isn't discovered:

1. Click + Add Integration (bottom right).
2. Search for WLED Task Map and click it.
3. Type your WLED device's IP address (from "What you need" above) and submit.

That's the entire configuration. If you get "Could not reach the WLED device", double-check the IP and that the strip is powered on.

1. Open any dashboard (e.g. Overview in the sidebar).
2. Click the ✏️ pencil (top right) to enter edit mode.
3. Click + Add card, scroll down or search for WLED Task Map, and click it. Click Save.
4. Click Done to leave edit mode.

Card not in the list? Do a hard refresh of your browser: Ctrl+Shift+R (Windows) / Cmd+Shift+R (Mac). On the phone app: close and reopen the app.

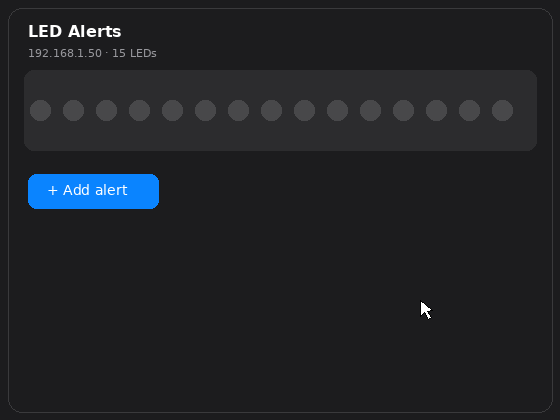

You'll now see your LED strip drawn as a row of dots.

In the card:

1. Tap ＋ Add alert.
2. Tap the dots (LEDs) on the strip that should light up. Drag across to select several. They glow in your chosen color so you can see exactly what you picked.
3. Type the entity to watch — start typing and pick from the suggestions. An entity is anything Home Assistant tracks: sensor.printer_status, binary_sensor.front_door, todo.shopping_list…
4. Tap the states that should trigger the alert — e.g. error and unavailable. (Skip this for to-do lists: they trigger automatically whenever they have pending items.)
5. Pick a color with the color picker.
6. Tap Add alert. Done — it's live immediately.

Your alerts are listed under the strip in plain language, e.g.:

🔴 3D Printer is error / unavailable → LED 3, 4, 5 ✏️ 🗑

Tap ✏️ to change anything, 🗑 to remove.

• When a watched entity enters one of its trigger states, its LEDs light in the chosen color.
• When it recovers, those LEDs turn off.
• The rest of your strip is untouched — you can keep using WLED normally.

A single 30-LED shelf strip can act as a whole-house dashboard by giving each topic its own block of LEDs:

(To-do lists work the same way: map todo.shopping_list to a block and it lights when items are pending, or use fill with a 0→10 range to show the count as a bar.)

Tips that make multi-LED setups work well:

• Leave a dark LED between zones so adjacent alerts don't read as one blob.
• Same color per zone, different effect per severity — solid = info, pulse = warning, blink = act now. Easier to learn than ten colors.
• Use the 🔦 test button after building each zone to confirm the physical layout matches what you tapped.
• Overlap on purpose: map a "panic" rule (e.g. binary_sensor.water_leak is on) to all 30 LEDs in blinking red — rules later in the list win, so it overrides every zone when it fires.

Running two strips (e.g. desk + hallway)? Add the integration once per WLED device and place one card per device on your dashboard — each card binds to its own strip, so the desk strip can track your printer while the hallway strip tracks the household lists.

Which states should I pick? unavailable and error are good defaults for most devices. For sensors that signal a problem by turning "on" (door open, leak detected, low battery), pick on. Not sure what states an entity has? Open it in Developer Tools → States and watch what it reports.

My strip has no segments configured — is that OK? Yes. A fresh WLED install works out of the box; LED numbers simply count from the start of the strip (first LED = 0).

Can two alerts share the same LEDs? Yes — if both trigger, the newer rule's color wins.

LEDs lit up that I didn't expect? One of your watched entities is probably unavailable (device offline). That's the alert doing its job — or a sign to remove that mapping.

Any automation can light an LED directly — useful for things that aren't entities (webhooks, script failures, CI builds):

action:
  - service: wled_taskmap.set_alert
    data:
      led: 5
      color: "FF6600"

wled_taskmap.clear_alert (with led) turns it back off; wled_taskmap.clear_all clears all manual alerts.

Download this repository, copy the custom_components/wled_taskmap folder into your Home Assistant config/custom_components/ folder, restart HA, then continue from Step 2.

MIT
