ngx-source-inspector

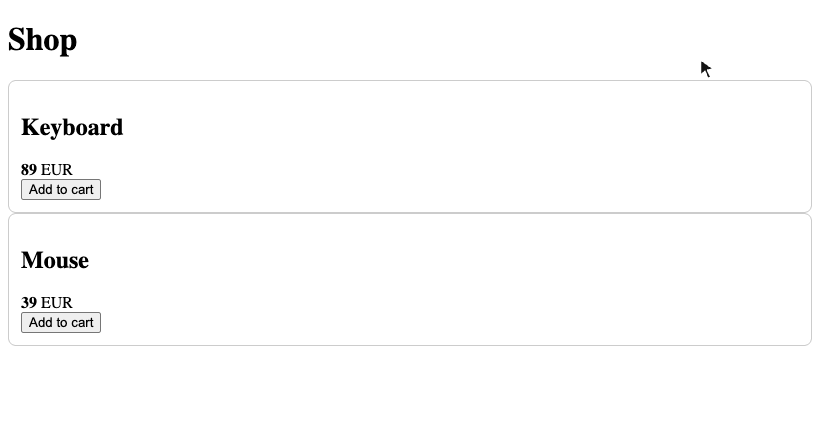

Hold Alt (Option on macOS) and hover any element of your Angular app to see which component and which template line it comes from. Alt+click opens that line in your editor.

It only runs in development builds.

Experimental. This relies on enableTemplateSourceLocations, a compiler option that Angular doesn't document and doesn't cover by semver. It could change or go away in any release. Tested with Angular 22.2. This isn't an official Angular package. The proposal to support this in Angular itself is angular/angular#70927.

ng add ngx-source-inspector

This:

• creates a tsconfig.dev.json that turns on enableTemplateSourceLocations, and uses it for the development build configuration only (or turns the option on in the tsconfig that configuration already uses);
• adds provideSourceInspector() to your application providers.

Then run ng serve, hold Alt and move the mouse over the page.

1. Create a tsconfig for development builds, next to your app's tsconfig:

   {
     "extends": "./tsconfig.app.json",
     "angularCompilerOptions": {
       "enableTemplateSourceLocations": true
     }
   }

2. Use it in the development configuration of your build target in angular.json:

   "development": {
     "tsConfig": "tsconfig.dev.json"
   }

3. Add the provider:

   import { provideSourceInspector } from 'ngx-source-inspector';

   export const appConfig: ApplicationConfig = {
     providers: [provideSourceInspector()],
   };

provideSourceInspector({ key: 'Shift' });

The Angular CLI dev server runs on Vite, which serves /__open-in-editor (the launch-editor middleware). It detects the editor that's running: VS Code, Cursor, WebStorm, Zed and others. If yours isn't detected, set LAUNCH_EDITOR, which gets called with <file> <line> <column>:

LAUNCH_EDITOR=code ng serve

That endpoint comes from Vite and isn't documented by the Angular CLI. If it's missing, the inspector copies path:line:column to the clipboard and tells you so.

Nothing ends up in production bundles, as long as the compiler option stays out of the tsconfig used for production:

• provideSourceInspector() checks ngDevMode, which production builds replace with false, so it becomes an empty provider list and the inspector code is dropped from the bundle.
• The template paths come from the compiler option. If you turn it on in tsconfig.app.json, every template path ships in your production bundle. That's why it goes in a development-only tsconfig.

This repository's CI builds the demo app for production and fails if the bundle contains any inspector code, data-ng-source-location attribute or template path. To check your own app, build it for production and search the output for data-ng-source-location.

The inspector only sends project-relative paths (no absolute paths, no ..) found on elements rendered by an Angular component to the dev server, so injected markup can't be used to open an arbitrary file.

• The compiler makes paths relative to rootDir/rootDirs, while /__open-in-editor resolves them from the directory where ng serve runs. With a custom rootDir, or in some multi-project workspaces, Alt+click can open the wrong path.
• A component's host element points to the template where the component is used, not to its own template.
• Elements inside closed shadow roots can't be inspected. Open shadow roots work.
• Elements rendered by libraries compiled without the option (such as UI component libraries) have no location. The inspector uses the nearest element from your own templates instead.

With enableTemplateSourceLocations, the Angular compiler adds a data-ng-source-location="src/app/app.html@o:9,l:1,c:2" attribute to every element of your templates. The inspector reads it on hover, uses Angular's ng.getOwningComponent() debugging utility to find the component, and calls the dev server to open the file.

Requires Node.js 22.22.3+ or 24.15+.

npm install
npm run build:lib         # library and ng-add schematic, in dist/ngx-source-inspector
npm start                 # demo app with the inspector
npm test                  # unit tests and schematic tests
npm run check:production  # production build of the demo, checked for leftovers

The first prototype, linked from the Angular issue, is tagged prototype.

MIT
