Data-Run-Mobile is a Flutter application developed for the National Malaria Control Program (NMCP) in Yemen. The app facilitates the submission and synchronization of malaria-related data with the main backend system, Data-run-Api. This tool is designed to streamline data collection processes and ensure accurate and timely data transmission to support malaria control efforts.

• Dynamic Form Download: The app downloads forms designed on the backend, which can include various question types.

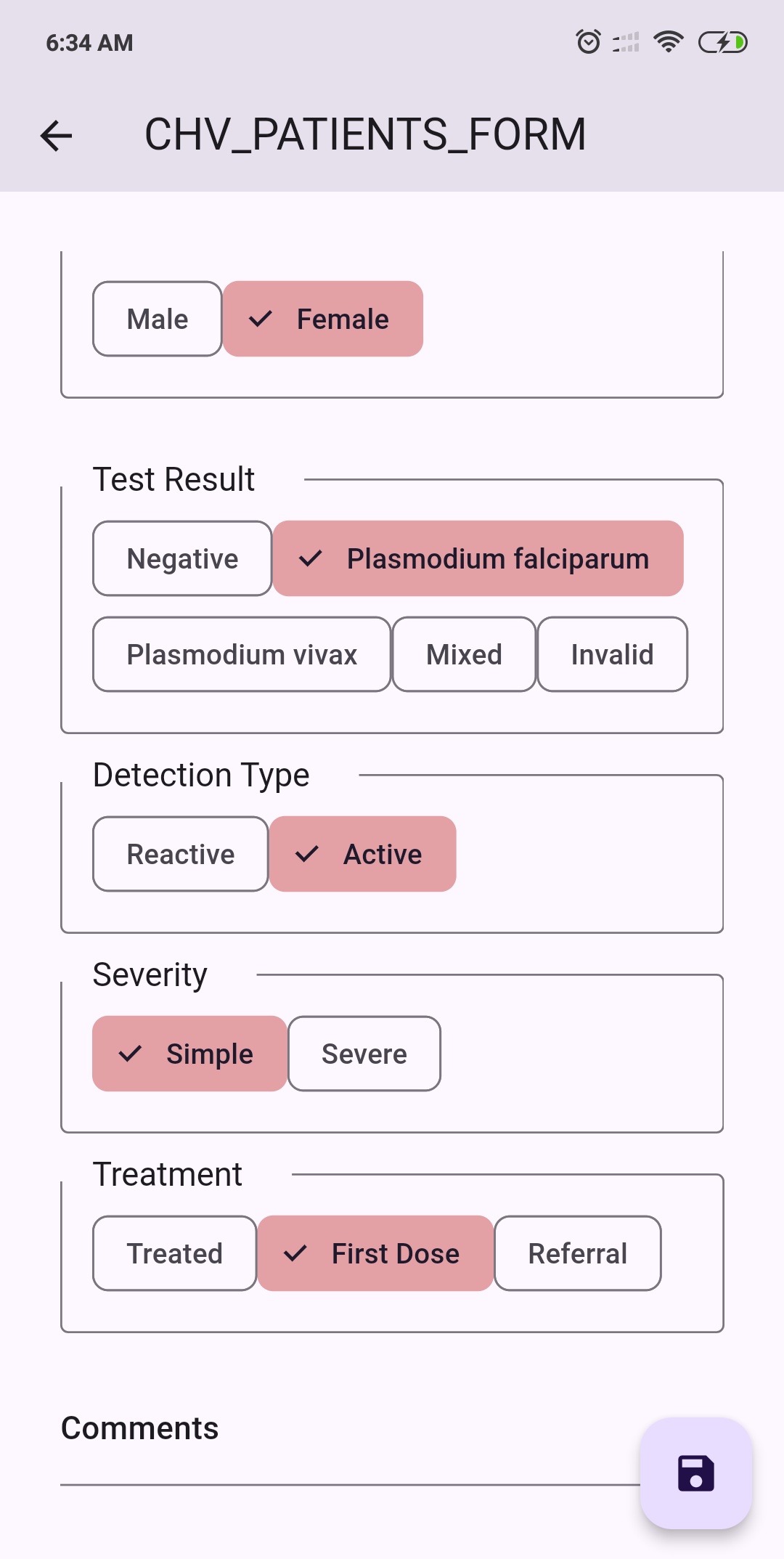

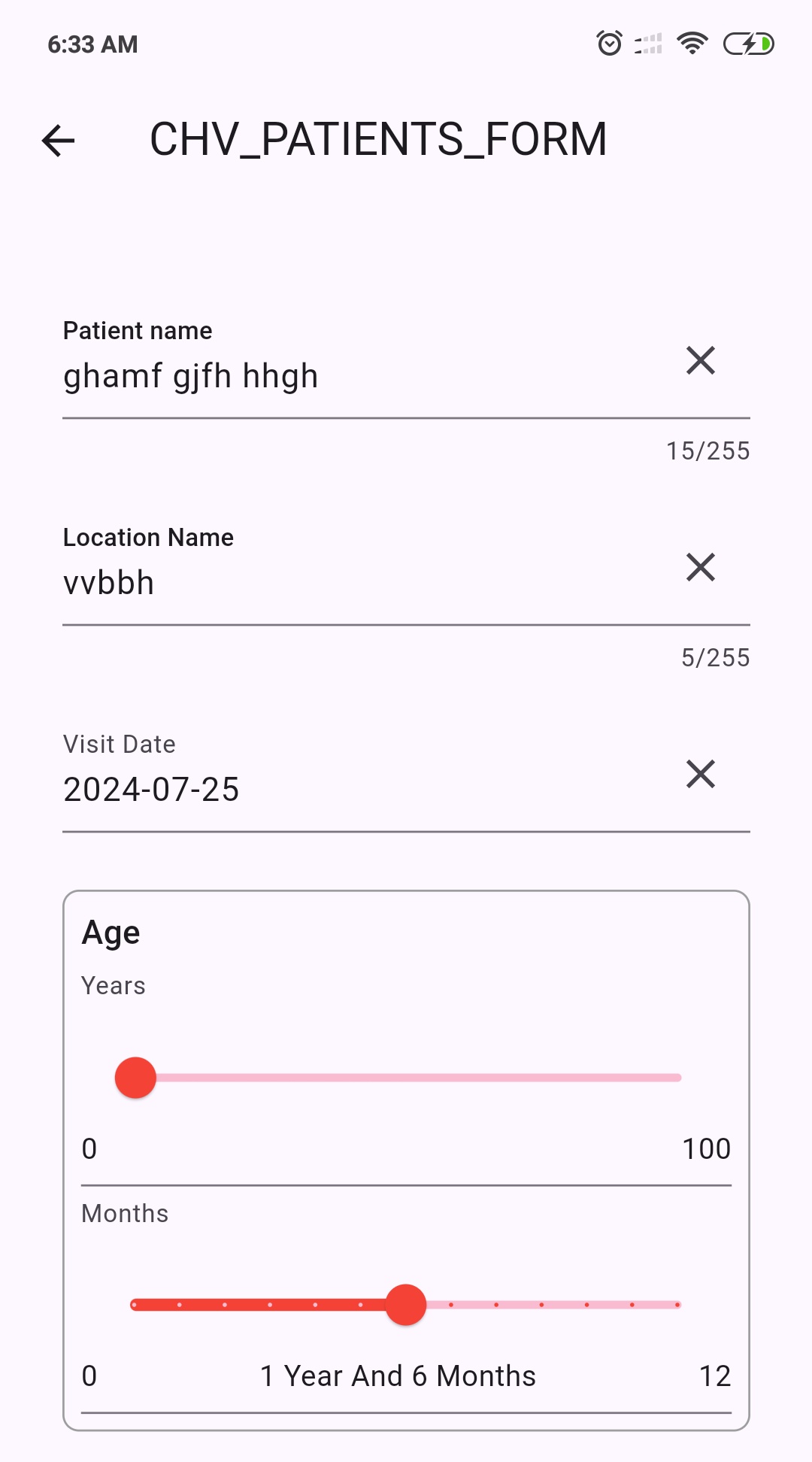

• Question Types: Supports Text, Number, Date, Multi Answer, Single Answer, Image, and File questions.
• Data Submission: Users can submit various malaria-related data directly from the app.

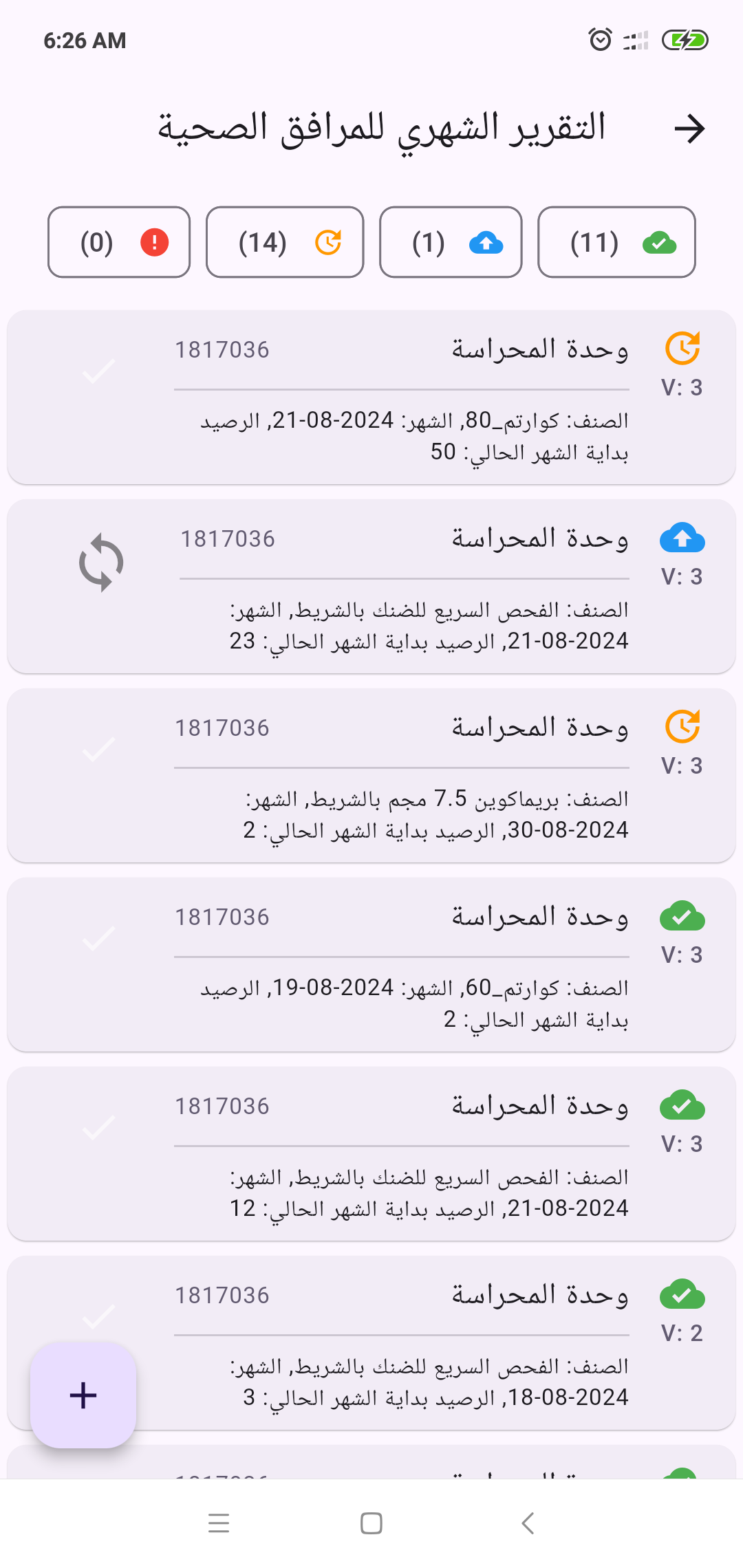

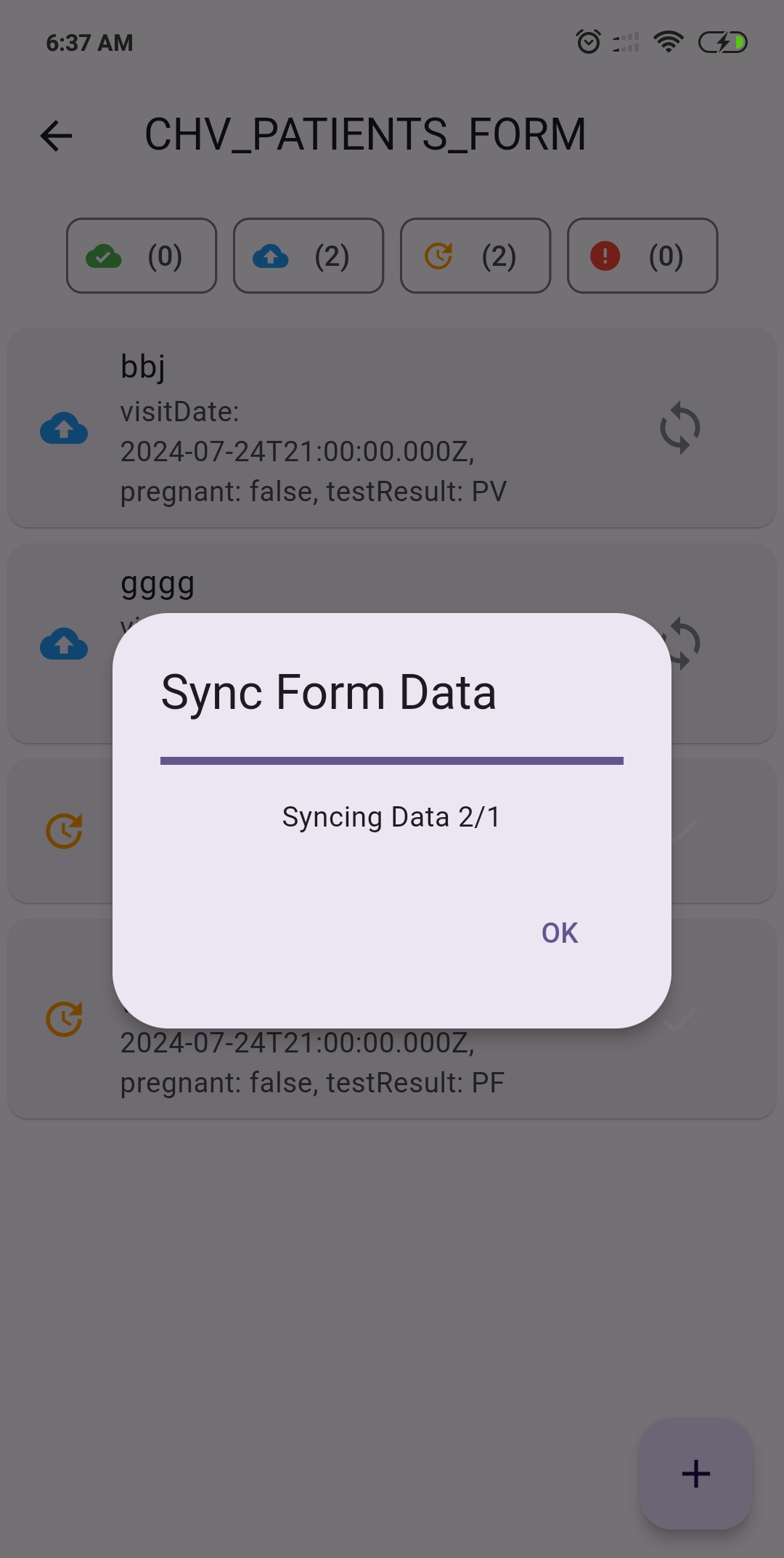

• Data Synchronization: The app syncs submitted data with the Data-run-Api, ensuring all information is up-to-date.

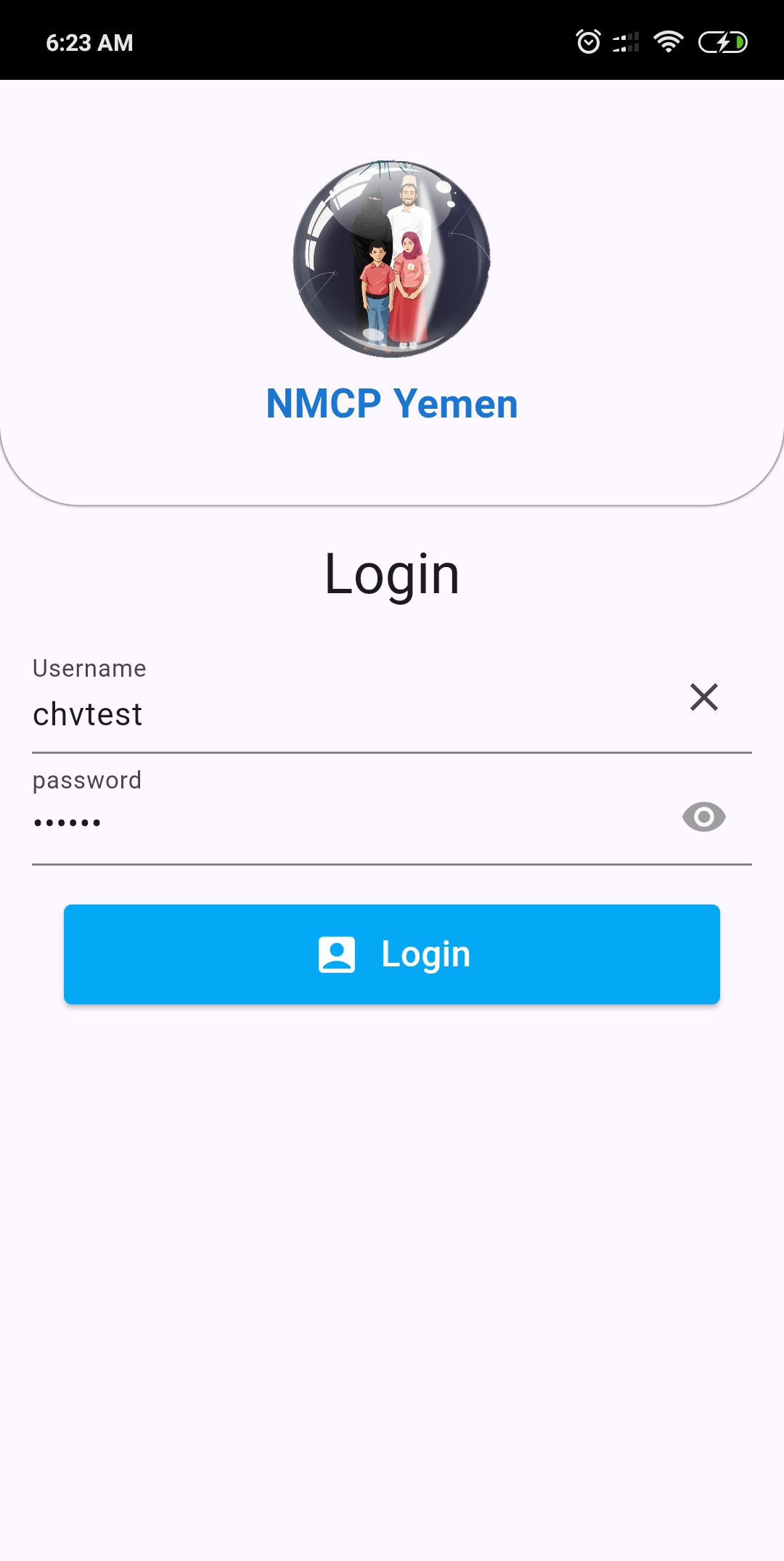

• User Authentication: Secure login and authentication to ensure data integrity and privacy.
• User Management: Quickly create users and assign them to particular teams.
• Offline Mode: Allows data entry even when offline; data will be synced once the internet connection is restored.
• User-Friendly Interface: Simple and intuitive design to facilitate ease of use by healthcare workers.

To install Data-Run-Mobile on your device, follow these steps:

1. Clone the Repository:

   git clone https://github.com/Hamza-ye/datarunmobile.git

2. Navigate to the Project Directory:

   cd data-run-mobile

3. Install Dependencies:

   flutter pub get

4. Run the App:

   flutter run

We manage field activities involving teams and assignments, where data collection is a core task. Activities may target specific entities such as locations, health facilities, or people, and could involve tasks like distributing items (e.g., ITNs, medicines) or supervising teams. Each team has planned locations and allocated quantities for their assignments.

1. Assignments: Link an activity, orgUnit, team, and day.
2. Activity: Groups assignments, teams, and tasks within a defined time frame.
3. Teams: A "person entity" created before linking a user, allowing assignment distribution. Later, a user can be linked to a person to gain permissions and configurations upon login,
4. Users: Store login info (username, password, etc.).
5. DataForm Templates: Templates for data collection, varying per team/task, DataForm Templates can be linked to an assignment/ or just a general form to collect data with no particular assignment, when linked they are used to submit data for the assignment progress.
6. Data Submission: Stores submitted data linked to teams with context related attributes such as user, team, assignment...etc

• Definition:

  Assignments link an activity, organization unit (orgUnit), assigned team, day, and a map of dynamic attributes (e.g., ITNs, Population):

  { "attributeName": "attributeValue" }


  • Assignments are implemented hierarchically, allowing parent-child relationships. For example:
    • Supervisor Assignment:
      • Activity: ITNs Supervision.
      • OrgUnit: District supervised.
      • Team: Supervisor team.
      • StartDay: 1.
      • Allocated Resources: Total district ITNs and population.
    • Child Assignment:
      • Activity: ITNs Distribution.
      • OrgUnit: Village within the district.
      • Team: Field distribution team.
      • StartDay: 1.
      • Allocated Resources: Village ITNs and population.

• Templates:
  • Data collection templates vary based on team or assignment needs.
  • Forms may be general or linked to specific assignments for tracking progress.
• Submissions:
  • Store collected data, including metadata like timestamps, GPS coordinates, assignment reference if the template is linked to an assignment, and user identifiers.

1. Form templates linked to an assignment/task:

   • Assignments can have one or more DataForms linked to it and with the right permission assigned teams/users can access these forms to collect data about the assignment if they have this assignment assigned to them or is a sub assignment of their assignement.

   • Example assignment for a team:

     {
       "uid": "llm1EHPJ5kh",
       "entityScope": "Assigned",
       "activity": { "uid": "RHl5bdmYXVr" },
       "startDay": 1,
       "orgUnit": { "uid": "HgWpVtC10fF" },
       "team": { "uid": "YFNLJEoYpfy" },
       "allocatedResources": { "ITNs": 899, "Population": 89 },
       "parent": { "uid": "rSBRh6eofeH" },
       "forms": [
         "Tcf3Ks9ZRpB",
         "RtnmK39VXTY"
       ]
     }


• Create Form Templates that dynamically adapt to the context:
  • Fields can reference Tasks or Assignments (e.g., targetedOrgUnit, population, resourcesUsed).
  • Some forms are independent of tasks/assignments for surveys or general reporting.
  • Allow flexible linking between forms and entities, enabling progress tracking, summaries, or data validation.

Task:

{
  "id": "task_001",
  "name": "Distribute ITNs in Village A",
  "description": "Daily path for team A",
  "startDate": "2024-01-01",
  "endDate": "2024-01-01",
  "allocatedResources": ["ITNs"],
  "targetedOrgUnits": ["village_a", "school_b"],
  "metadata": { "population": 1000, "ITNs": 500 }
}

Assignment:

{
  "id": "assign_001",
  "taskId": "task_001",
  "assignee": "team_a",
  "assignedForms": ["form_001"],
  "status": "active"
}

• Dynamic Configuration:
  • Teams can be formed for specific projects and dissolved afterward.
  • Teams are hierarchical, with supervisors managing subordinate teams.
  • teams can be assigned to one or more assignments and a team can manage or report about the assignment of their managed teams
• Example of Team:

{
    "uid": "P5fjmw0elDV",
    "code": "317",
    "name": "team-317",
    "disabled": false,
    "activity": { "uid": "RHl5bdmYXVr" },
    "users": [ { "uid": "qqHQA2BFJJf" } ],
    "assignments": [
        { "uid": "DDl4bimW3Vr" },
        { "uid": "ERT5bd4Y6Vr" }
    ],
    "managedTeams": [],
    "formPermissions": [
        { "form": "form_001", "permissions": ["VIEW_TRACK_SUMMARY"] },
        { "form": "form_002", "permissions": ["ADD_SUBMISSIONS"] }
    ]
}

Form Templates:

[
    {
    "id": "form_001",
    "name": "assigned location resource distribution data",
    "fields": [
        { "name": "orgUnit", "type": "reference", "ref": "orgUnit" },
        { "name": "resourcesUsed", "type": "number" },
        { "name": "population", "type": "number" },
    ]
    },
    {
    "id": "form_002",
    "name": "teams allocated resource movement transactions",
    "fields": [
        { "name": "orgUnit/centeral wh location", "type": "reference", "ref": "orgUnit" },
        {"id": "transactions", "name": "resource to teams transactions details", "type": "table" ,
        "fields": [
            { "name": "team", "type": "reference", "ref": "managedTeams" },
            { "name": "resourcesDispensedToTeam", "type": "number" }
        ]
       }
    ]
    }
]

Different modules based on the user context.

Available when user have a team that is part of activities/assignment workflow, and include the following:

• Assignment Explorer Purpose: Facilitate management of Assignments.

• Features: 1. Assignments View:

• List Assignments with attributes like start date, end date, allocated resources, and status.

• Filters for Assignment type, date range, or completion status:

  • Elements:
    • Assignment Title: (e.g., "Distribute ITNs in Village A")
    • Due Date/Time: (visual indicator for overdue tasks)
    • Status: (e.g., "In Progress," "Completed," "Reassigned")
    • Assignee: (Team name or individual user)
    • Priority: (Optional: High, Medium, Low)
    • Actions:
      • "View Details"
      • "Mark as Complete"
      • "Reassign"
      • "Reschedule"
      • "report progress"
      • "View Reports"

2. Assignment Details * Component: A modal or expanded view when "View Details" is clicked. * Elements: * Detailed Description: (Expanded view of the task description) * Attributes: (Display key-value pairs of task attributes) * Example: "Population": 1000, "Allocated ITNs": 500 * Subtasks: (If applicable, display a nested list of subtasks) * Assigned Forms: (List of forms associated with the assignment) * Progress Bar: (Visual representation of assignment completion) * Comments Section: (For team communication)

3. Assignments Map

• Component: An interactive map integrated within the app.
• Functionality:
  • Display assignments on a map (if applicable).
  • Allow users to filter assignments by location, status, or other criteria.
  • Potentially integrate GPS location tracking for field workers.

this section is available for users that are part of activity workflow, or users that are not part of any activity or assignment workflow.

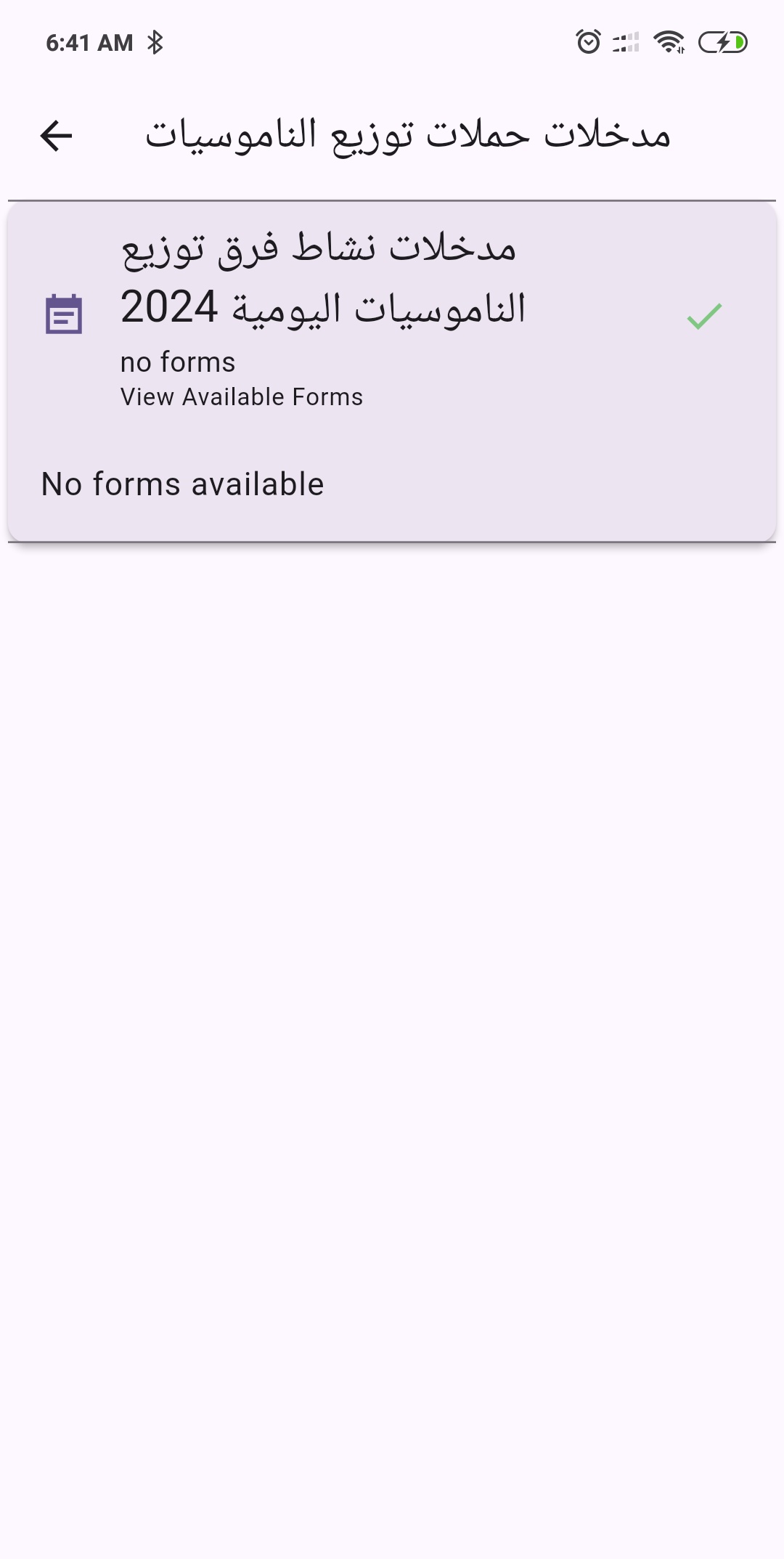

• Introduce a dedicated "Forms" tab or section within the app.
• This tab would list all available forms that the user has permission to access.
• Users can filter forms by type (e.g., "General Surveys, activity, assignment progress forms, ...etc").

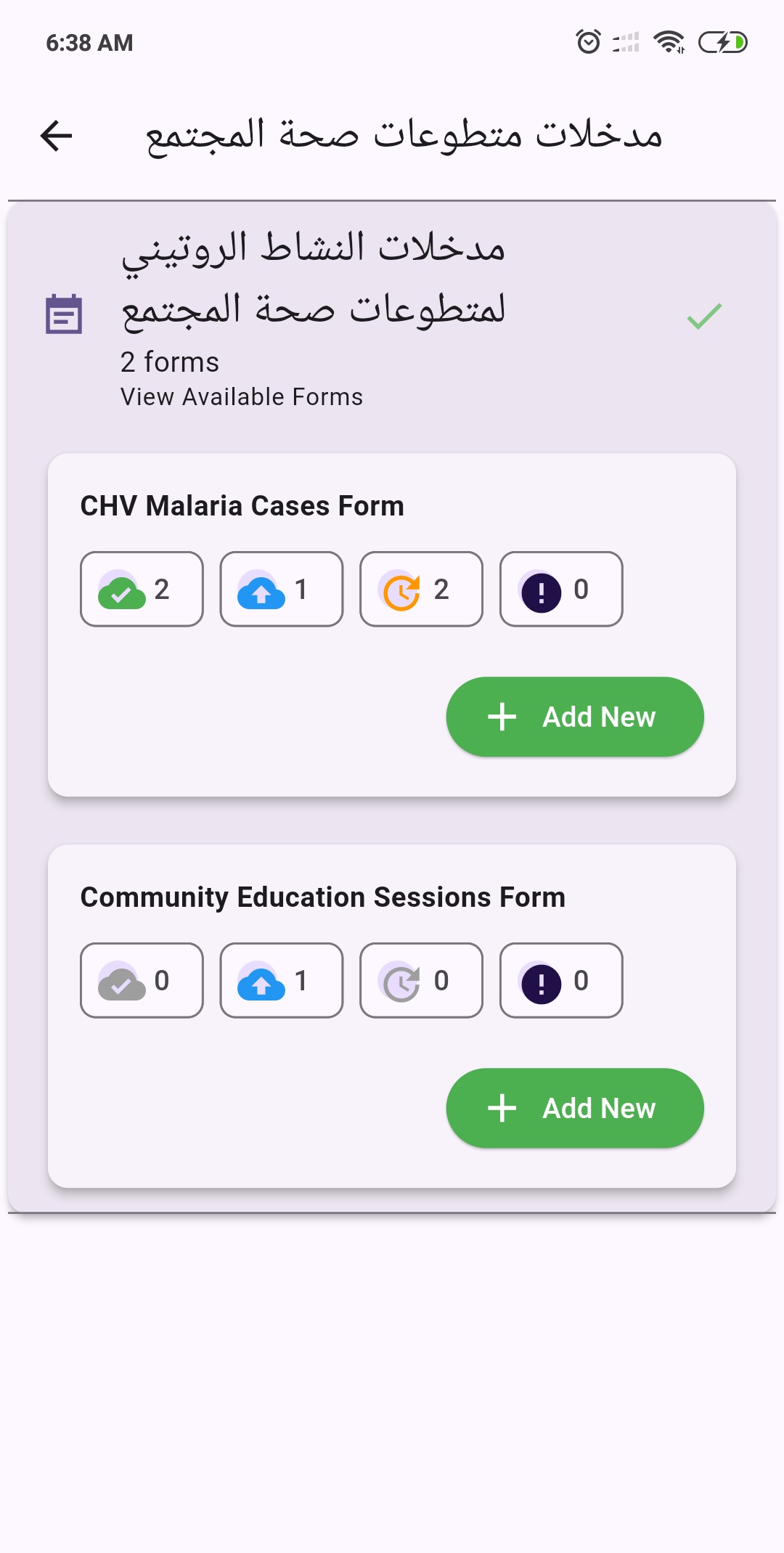

• Each form card would display the form name, description, and a "Start Form" button.

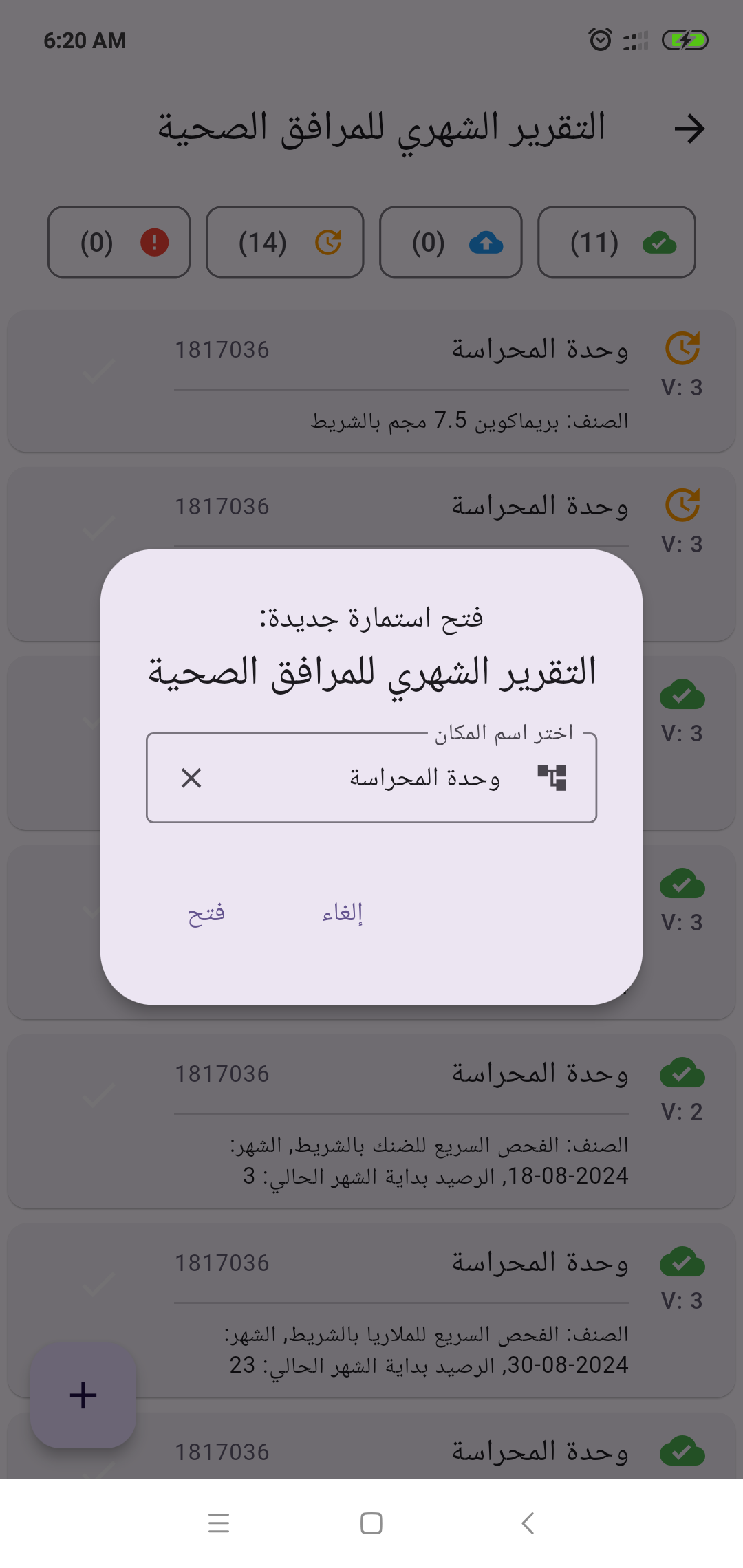

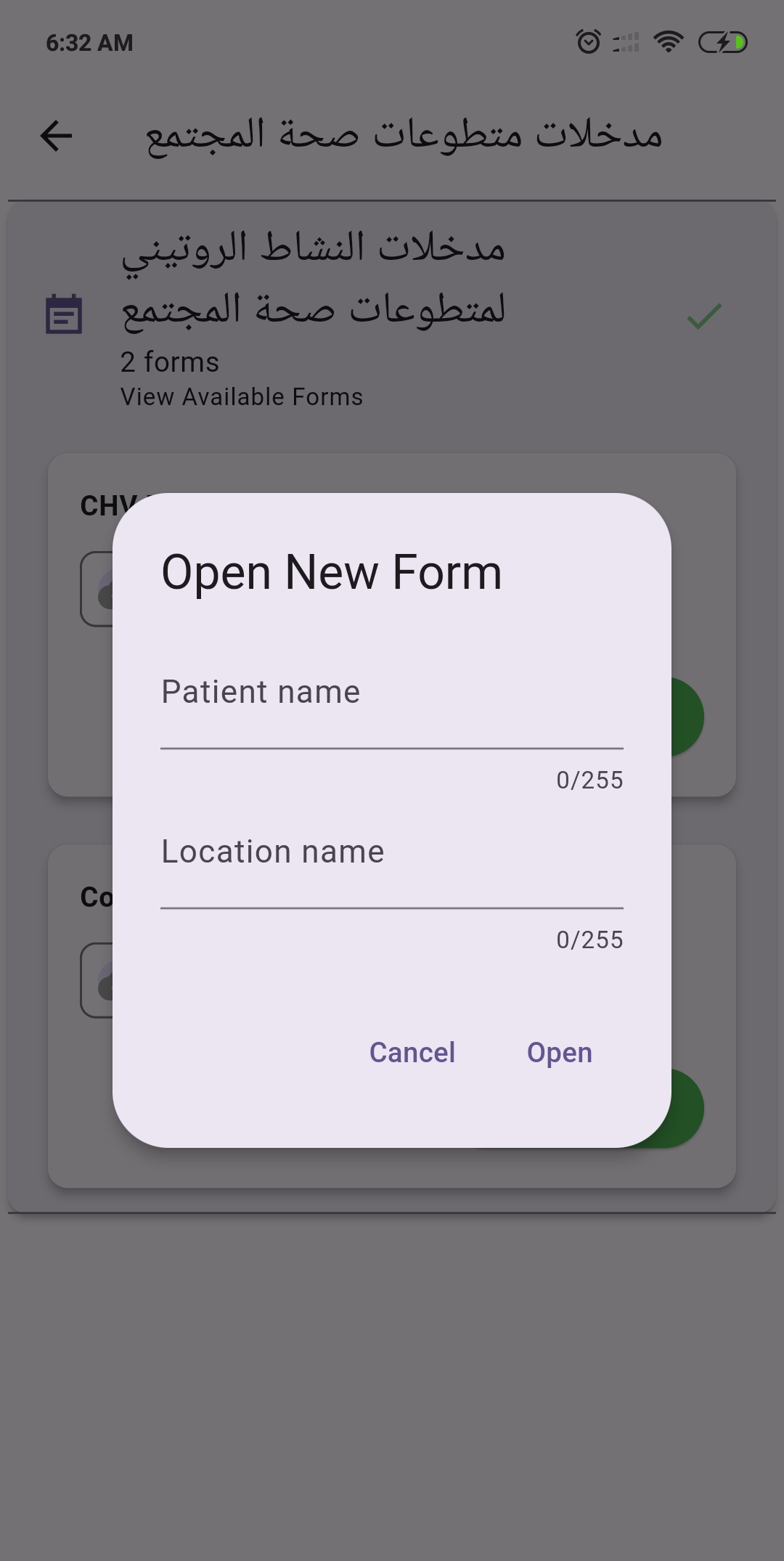

• Flexible Form Linking: If the form is also associated with an assignment assigned to the user Allow the users to link the form to existing assignment when adding/opening a new form. UI Indicators: Clearly distinguish between assignment-linked forms and standalone forms within the UI.
• For example:
  • Use different icons or colors to differentiate form types.
  • Display a clear indication if a form is linked to a specific assignment.

• Component: A dedicated section for managing teams.
• Elements:
  • Team Roster: (List of team members)
  • Team Assignments: (View and manage assignments for the team)
  • Team Performance: (Track team progress and identify potential bottlenecks)

• Component: A personalized overview of a user's assignments.
• Elements:
  • Key Performance Indicators (KPIs): (e.g., number of completed tasks, overdue tasks, progress percentage)
  • Charts and Graphs: (Visualize task completion rates, resource usage, etc.)
  • Customizable Widgets: (Allow users to add/remove widgets based on their preferences)

• Component: In-app notifications or push notifications.
• Functionality:
  • Alert users of new assignments, task updates, or urgent issues.

We welcome contributions to enhance Data-Run-Mobile. Please follow these steps:

1. Fork the repository.
2. Create a new branch (git checkout -b feature-branch).
3. Commit your changes (git commit -m 'Add new feature').
4. Push to the branch (git push origin feature-branch).
5. Create a pull request.

This project is licensed under the MIT License. See the LICENSE file for details.

For questions or support, please contact:

• Project Maintainer: Hamza
• Email: [email protected]
